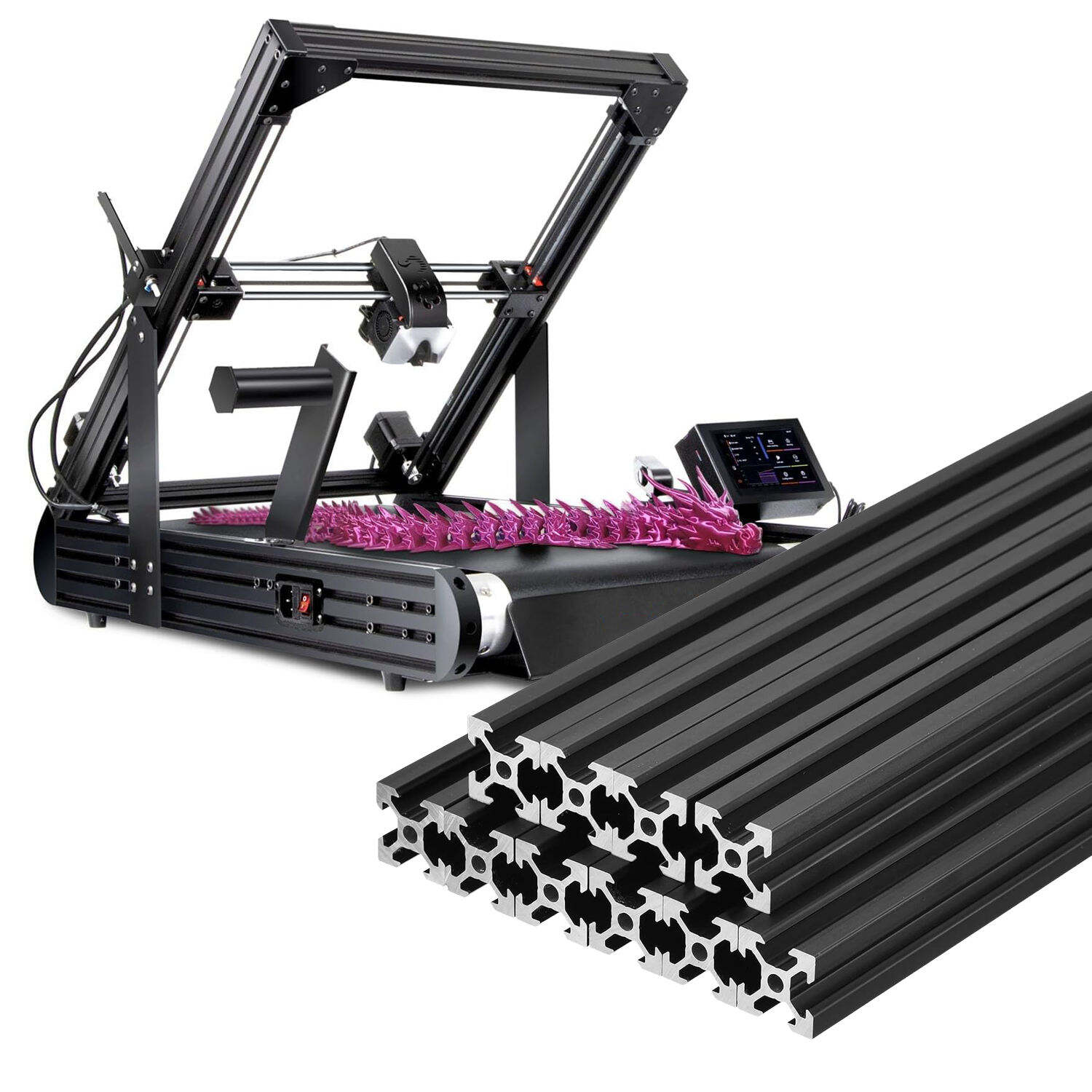

T slot extrusion has become really important in today's industrial design world because it offers this great modularity feature. Engineers love working with these systems since they can create frameworks that grow and change as production needs evolve over time. The standard T shaped grooves make it super easy to attach all sorts of things like panels, sensors, actuators and whatever else might be needed on site without having to do any welding work or special machining. According to some research published by Springer back in 2023, companies using modular aluminum setups actually cut down their reconfiguration times by around 40% when compared to traditional welded steel structures. This makes sense for manufacturers trying to implement lean practices since it means quicker transitions between different production runs and less wasted time during equipment changes.
T slot extrusions are making waves in automated manufacturing setups where being able to adapt quickly matters most. Many factories now build their conveyor systems around these adjustable frames because they can handle all sorts of different product dimensions without major overhauls when switching production batches. A recent study from Autodesk in 2024 found some pretty impressive numbers too automotive parts makers saved about 32 percent on redesign expenses simply by reusing standard frame parts across multiple workstations. This kind of cost saving really adds up over time for companies trying to stay competitive while maintaining quality standards.
A tier-1 aerospace supplier deployed t slot extrusions to create modular CNC machine enclosures, achieving significant operational improvements:
This implementation demonstrated how modular framing enhances both agility and sustainability in high-precision manufacturing environments.
T-slot extrusions provide great strength while keeping things light, which makes them really good for situations where something needs to last but also be moved around easily. Most people go with the 6061-T6 aluminum alloy because it can handle quite a bit of stress at 310 MPa tensile strength, yet it's still super light at just 2.7 grams per cubic centimeter. That's roughly what we'd call about a third of what steel weighs, but these materials can actually hold similar amounts of weight. Looking at some recent aerospace studies from last year, engineers found that using these lighter materials means robotic arms and conveyor systems can cut down on their overall weight by somewhere between 40% to 60%. And guess what? They don't lose any strength in doing so either.
The heat-treated 6061-T6 alloy provides three key benefits for industrial framing:
| Property | 6061-T6 Aluminum | Mild Steel |
|---|---|---|
| Density (g/cm³) | 2.7 | 7.85 |
| Tensile Strength (MPa) | 310 | 250 |
| Corrosion Resistance | High (Natural oxide layer) | Low (Requires coatings) |
In automotive assembly line testing, T slot extrusions supported static loads up to 1,200 kg/m while resisting exposure to coolants and degreasers. Thanks to its chromium-enhanced oxide layer, the alloy resists pitting corrosion in humidity above 85%, outperforming painted steel by 3x in accelerated salt spray tests.
A packaging automation company redesigned their robotic palletizing arms using T slot aluminum profiles, resulting in:
The lighter system also reduced energy consumption by 17%, while maintaining throughput at 1,800 kg/hour.
T slot extrusions come with carefully designed slots and connectors that make assembly possible without special tools or just simple hand tools sometimes. According to some industry data from last year, these kinds of systems cut down installation time almost in half when compared to traditional welding or bolting methods. The fasteners can be reused many times without compromising the strength of the structure, which matters a lot when moving things around between different projects. For folks working on their own builds or making changes at job sites, this kind of quick setup makes all the difference. Time saved means getting the job done faster, and being able to adjust as needed keeps everything running smoothly.
By eliminating welding, drilling, and complex hardware, t slot extrusions reduce labor costs by 30—40% in industrial settings. Maintenance is simplified through slide-out components and standardized replacements, minimizing equipment downtime. Additionally, workers can learn assembly procedures in hours rather than days, reducing training overhead and increasing workforce flexibility.
Last month's modular flooring project showed just how fast exhibition stands made with T-slot aluminum frames come together. We put up a complete booth in less than two hours flat. What really stands out though is the reuse rate. Over twelve events last year, around 90 percent of components got reused without any issues. That speaks volumes for these tool-free systems delivering quick setup times while saving money over time. When looking at temporary structures like field hospitals during emergencies or those emergency shelters after disasters, this kind of speed makes all the difference compared to building from scratch each time. Contractors tell us they save days on site preparation when working with these modular solutions.
T slot extrusion systems slash fabrication costs around 40% when compared to traditional welding methods since there's no need for special skills or extra finishing work after assembly. Most parts just need cutting with regular workshop saws which cuts down on material waste significantly. A recent study from the Manufacturing Efficiency Report in 2024 found that businesses switching to aluminum extrusions typically saved about $18k each year on their production lines. These savings come mainly from less wasted materials and quicker prototype development cycles, making these systems particularly attractive for small to mid-sized manufacturers looking to optimize their budgets without sacrificing quality.
Workers assemble T-slot systems 3—5 times faster than welded steel frames using only hex keys and hand tools. In U.S. industrial settings, this translates to labor savings of $45—$75 per hour. The table below highlights the efficiency gains when constructing a 10' x 8' work platform:
| Material | Assembly Time | Required Tools |
|---|---|---|
| T-Slot Aluminum | 2.5 hours | Hex key set, mallet |
| Welded Steel | 5.2 hours | Welder, grinder, clamps |
Most extrusion components stay good to go even after taking them apart, which means they can be used again and again on various projects. Car part makers have seen their costs drop around 70% over five years when they started using standardized T-slot frames for robots and conveyor belt systems. The whole system saves space too since companies don't need to keep so much stuff in storage anymore. Teams just take what's already there and rearrange it rather than buying new parts all the time. Warehouses end up needing about 30 to 35% less space because of this approach.
T slot extrusions come with standard sizes that usually follow either DIN 1025 or ISO 6786 guidelines. These consistent measurements make it possible to use different hardware components together across brands. For instance, an engineer working on a project might grab brackets from one manufacturer and panels from another, knowing they'll fit just fine. According to research published by the Material Handling Institute last year, companies using these standardized T slot systems saw their reliance on custom made parts drop by around three quarters when compared against traditional welding methods. This kind of standardization saves time and money while making assembly work much simpler in practice.
| Adaptability Metric | T-Slot Framing | Traditional Welded Framing |
|---|---|---|
| Reconfiguration Speed | 2-4 hours | 16-24 hours |
| Custom Part Dependencies | 15% | 90% |
| Cross-Supplier Compatibility | 98% | 32% |
With a slot and groove system, mounting sensors, conveyors and safety guards becomes quick and easy without tools, achieving around half a millimeter positioning accuracy. No more headaches from misalignment issues that come from drilling holes or tapping threads something that actually causes about one in four mechanical failures according to last year's Industrial Safety Report. The built-in channels for routing cables and hoses make things much cleaner too, so connecting to those fancy IoT devices and smart factory setups just works out of the box instead of requiring complicated workarounds.
The market saw over 200 new T-slot compatible accessories hit shelves just last year alone. Think modular robotics mounts that snap right into place, or those smart LED strips packed with built-in occupancy sensors that turn themselves off when nobody's around. Looking at third party contributions, they now make up nearly 4 out of every 10 industrial extrusion accessories available today. That's quite a jump from only 12% back in 2018. What's driving this expansion? Open source CAD libraries have made it easier for smaller companies to get started, while supplier networks are working together more than ever before. All these developments are helping push forward automation efforts across industries. When equipment works together smoothly and connects without issues, engineers can build prototypes for complicated systems roughly half as fast compared to traditional approaches. Time saved means projects get completed quicker and budgets stay under control.
