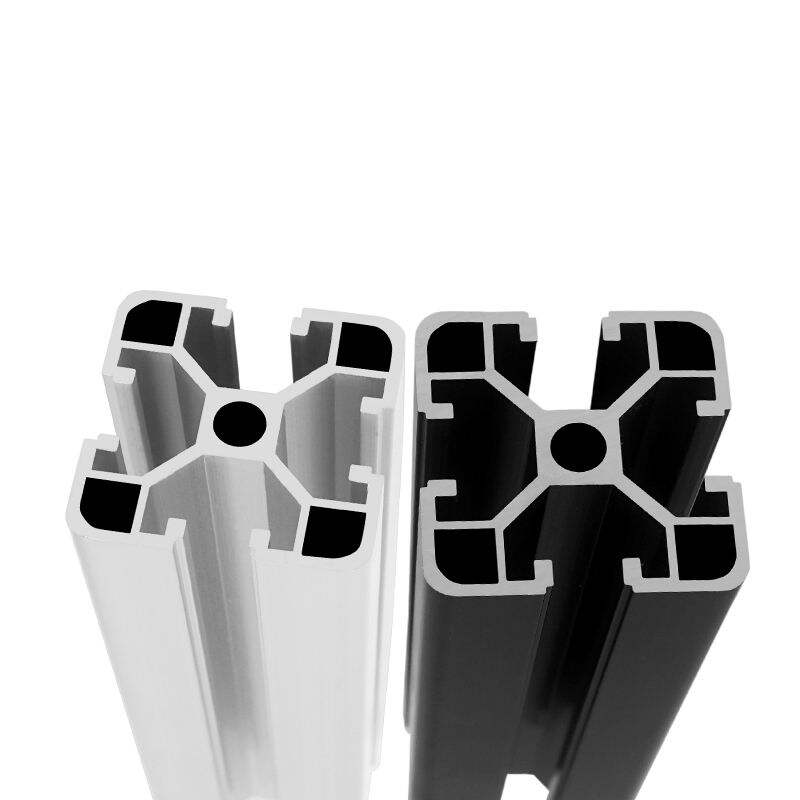

T slot aluminum profiles have this special T shaped groove running along them which makes it possible to assemble things module by module with those specific fasteners everyone talks about. When making these profiles, they start with round aluminum billets that get heated up somewhere around 450 to 500 degrees Celsius. Then comes the real magic part where the metal gets pushed through super accurate steel dies at pressures between 15,000 and 25,000 pounds per square inch. Think of it kind of like squeezing toothpaste out of a tube, except everything happens with machine level precision down to within 0.1 millimeters. What makes these profiles so useful are their structural characteristics that allow for all sorts of custom builds.
This design supports repeatable, tool-free assembly while maintaining structural integrity across diverse applications.
Transforming raw aluminum into functional T-slot profiles involves six critical stages:
Modern extrusion lines achieve up to 95% material utilization thanks to closed-loop process controls, as noted in a 2024 extrusion industry report.
| Alloy | Tensile Strength | Yield Strength | Typical Use Case |
|---|---|---|---|
| 6063-T5 | 186 MPa | 145 MPa | Architectural frameworks |
| 6005-T5 | 214 MPa | 185 MPa | Robotics/automation guides |
| 6105-T5 | 255 MPa | 215 MPa | Heavy-load structures |
When it comes to alloys, 6063-T5 stands out as the go-to choice for many manufacturers because it's so much easier to work with during extrusion processes. We're talking roughly 40% less hassle compared to 6005, plus it gives a much nicer surface finish after processing. Now if the project involves parts that need to handle serious stress, then 6005-T5 might be worth considering despite being less common. Tests from ASTM B221-21 show around 15% improvement in fatigue resistance there. Speaking of tempers, the T5 treatment where material gets air cooled first before undergoing artificial aging actually boosts strength by somewhere between 10 and 20 percent over T6 when looking at slot bearing applications specifically. That makes T5 particularly good for those critical load bearing components where failure isn't an option.
T slot aluminum extrusions have become essential components across many manufacturing operations thanks to how versatile they are structurally and how quickly they can be put together. Statistics show that around 60 percent of factories rely on these profiles for everything from building modular workstations to creating material handling systems and even setting up protective enclosures around machinery. The automotive industry has really taken to this technology too. Those 40 by 40 millimeter T slot frames allow manufacturers to create adjustable assembly jigs which cut down setup time significantly when compared with traditional welded steel options we see elsewhere. What makes these aluminum profiles stand out is their natural resistance to corrosion, particularly when made from the 6063 T5 alloy grade. This feature becomes especially valuable in environments requiring frequent cleaning such as food processing facilities where both cleanliness standards and equipment longevity matter most.
T slot aluminum has become a go to material in automation applications because of its impressive strength to weight ratio, with yield strengths reaching around 215 MPa. Engineers love working with it when building robot arms and conveyor frames since they get the rigidity needed without adding unnecessary bulk, plus these structures stay accurate even when dealing with changing loads. A recent industry report from last year showed something interesting too - most system integrators (about 7 out of 10) actually favor aluminum extrusions compared to traditional welded frames when setting up prototype robotic cells. What makes T slot profiles so special? They make it much easier to install all sorts of components like sensors, pneumatic actuators and servo motors. This streamlined setup process cuts down on commissioning time by roughly 40 percent according to field data, and the positioning accuracy stays within about half a millimeter repeatability across different runs.
More industrial designers are turning to T-slot aluminum when creating equipment housings and architectural partitions that need to balance function with good looks. The anodized finish on these materials creates surfaces that last longer while looking great, making them ideal for safety guards and those cleanroom enclosures that have to meet strict ISO 14644-1 Class 5 requirements. And let's not forget about the thermal properties either. At around 167 W/mK thermal conductivity, this type of aluminum works really well as a passive way to dissipate heat. That makes it especially valuable in places like semiconductor manufacturing facilities where maintaining proper temperatures is critical for protecting sensitive precision optics and electronic components.
The area moment of inertia, often referred to as I, basically tells us how resistant a shape is to bending forces. When looking at T-slot profiles specifically, those that are wider or have thicker walls can be around 40 percent stiffer compared to smaller ones when subjected to similar loads according to ASM International's findings from 2023. For engineers working on frame designs for things like CNC machines or conveyor systems, this number matters a lot because any bending needs to stay really minimal - typically no more than 0.1 millimeters over each meter length. Otherwise, the precision required for machining operations or accurate positioning gets compromised.
The torsional rigidity value, often labeled as J, basically tells us how well a structural profile can stand up against twisting forces. This property becomes really important when dealing with things like cantilevered beams or those robotic arm mechanisms we see in manufacturing plants. Take for instance a standard 40 by 40 millimeter extrusion with walls about 3 millimeters thick. Such a profile typically has a J value around 16,800 mm to the fourth power. That means it can handle approximately 85 Newton meters worth of torque before showing any real sign of deformation, keeping angular displacement below half a degree over each meter length. Smart engineers spend considerable time tweaking the shape of these profiles because they need to find that sweet spot between making something light enough to work with but still stiff enough for proper function while also allowing convenient mounting options in different configurations.
When calculating bending stress (sigma), engineers rely on this basic formula: sigma equals M times y divided by I Here, M stands for the bending moment experienced by the beam, and y represents how far away we measure from what's called the neutral axis. In real world situations such as designing conveyor belts for factories, most aluminum alloys can handle up to around 120 MPa before showing signs of failure. That number becomes critical when specifying materials for these kinds of heavy duty applications. To keep things from sagging too much, designers also look at deflection calculations given by another equation: delta equals five w L to the fourth power over three hundred eighty four E I In this case, E refers to Young's modulus which measures material stiffness, while I remains our trusty moment of inertia value. Many professionals actually prefer specialized software packages tailored to specific profiles rather than doing all these calculations manually. These programs help balance structural integrity against cost considerations, making sure components are strong enough without being unnecessarily heavy or expensive.
The safety factor varies quite a bit depending on what kind of load we're talking about. Static loads generally need around a 3 to 1 safety margin while dynamic applications require something closer to 8 to 1. Take a pallet handling robot joint as an example. If it's rated for 500 kg, then technically speaking it should handle three times that weight before failing completely. Why such big numbers? Well, manufacturers build these margins into their designs to cover all sorts of variables. There are tiny manufacturing tolerances in joints themselves usually within plus or minus 0.2 mm. Then there's thermal expansion which can add another 12 micrometers per meter per degree Celsius. And let's not forget about wear and tear over time. Most industrial robots operate for millions of cycles before needing replacement parts. These built-in safety buffers make sure everything keeps running smoothly even when things get tough on the factory floor.
The T-slot aluminum extrusions really stand out because of how adaptable they are, thanks to those interlocking grooves that let people put things together quickly without needing tools for most jobs. These standard T-slots work great with all sorts of hardware like T-nuts, various brackets, and different kinds of panels which makes them essential when putting together things like adjustable workbenches, protective covers around machines, or even enclosures for robots. A recent report from the Industrial Framing Institute back in 2023 found something pretty interesting too. They discovered that these modular T-slot systems can cut down on prototype development time by about 40 percent when compared against traditional welded steel solutions. There are actually three main reasons why this happens, but we'll get into those details shortly.
This modularity accelerates innovation and reduces downtime during retooling.
T slot profiles made from 6063 T5 and 6005 T5 alloys offer decent machining properties along with yield strengths ranging somewhere around 24,000 to 30,000 psi. This means workers can drill holes or cut sections right at the job site without worrying too much about weakening the structure. According to some industry data from last year's framing report, roughly 7 out of 10 manufacturers have started incorporating these modular extrusions when building their custom tooling setups. The anodized finish on these materials stands up pretty well against both wear and corrosion. Plus, they take labels, sensors, and those little pneumatic fittings quite easily, which makes installation a lot smoother overall for anyone working with them day to day.
T slot systems act as a middle ground between ideas on paper and actual manufacturing setups, since they provide flexible frames that can be reused again and again for testing different versions. One major electric vehicle battery factory saw their expenses drop significantly when workers used aluminum extrusions during early stages of design, saving them around $62,000 worth of costs later on when switching to permanent steel welds. These T slot frameworks are actually stronger than regular steel but weigh much less too – roughly 1.5 to 3 times better ratio wise. They hold about 1200 pounds per foot along conveyors yet stay lightweight enough so two people can adjust them without needing special equipment. This makes sense both from safety perspective and budget standpoint.
In most industrial settings, T-slot aluminum extrusions tend to beat out welded steel solutions. Welding requires trained workers and produces fixed connections that can't be changed later. Aluminum systems work differently though they snap together quickly and can be rearranged as needed using just simple hand tools. Some recent studies from 2023 suggest that switching to aluminum frames cuts down on labor costs somewhere around 40%, mainly because installation takes less time and the materials themselves are used more efficiently in the process. Many manufacturers have started making this switch for exactly these reasons.
Key differentiators include:
These benefits make T-slot aluminum the preferred choice for automation, prototyping, and clean environments.
Despite aluminum’s advantages, welded steel remains the better option in specific cases:
As shown in a 2023 industrial survey, 68% of manufacturers adopt hybrid solutions—using welded steel for foundational bases and T-slot aluminum for modular superstructures—to combine maximum load capacity with flexibility for automation components, guards, and sensors.
T-slot aluminum extrusion refers to profiles of aluminum with a T-shaped groove running along their length, enabling modular assembly with specific fasteners.
T-slot aluminum profiles are preferred due to their versatility, strength, corrosion resistance, and ease of assembly, making them ideal for constructing workstations, material handling systems, and enclosures.
Common alloys for T-slot aluminum extrusion include 6063-T5, 6005-T5, and 6105-T5, each offering differing levels of strength, ease of extrusion, and corrosion resistance.
T-slot systems offer advantages over traditional welded steel frames including lower weight, cost efficiency, adjustability, and resistance to corrosion.
Welded steel is preferred for ultra-high static loads and extreme temperature environments where aluminum may lose strength.
