Anodized aluminum profiles start as regular extruded aluminum alloys but go through something called an electrochemical process which creates this controlled oxide layer right on the surface. What makes it different from just painting or coating something is that this anodic layer actually forms from within the metal itself. The result is a tough honeycomb pattern underneath where those tiny pores range between about 10 to 150 nanometers across. When we talk about what happens during this treatment, basically everything gets better mechanically and chemically without losing what makes aluminum great in the first place its light weight. Even though there's some added material, the overall density only goes up around 3.3 percent compared to when the aluminum was untouched.
The anodization process significantly improves aluminum's inherent characteristics:
| Property | Raw Aluminum | Anodized Aluminum Profile |
|---|---|---|
| Surface Hardness | 15-20 HV | 200-400 HV |
| Corrosion Resistance | Moderate | 60% improvement |
| Thermal Conductivity | 237 W/m·K | 205-220 W/m·K |
| Electrical Insulation | Conductive | 1,000–1,500 V/μm dielectric strength |
These enhanced properties make anodized aluminum ideal for demanding environments such as marine hardware and chemical processing equipment.
Manufacturers turn to anodized aluminum profiles because they address several important needs at once. They weigh about 35 percent less than steel, making them ideal for projects where weight matters. Plus, since they're completely recyclable, companies can tick off sustainability goals while still getting good performance. Architects love these materials too. Around 72 percent of modern building structures actually include them thanks to how well they resist corrosion and maintain shape even when exposed to really harsh conditions ranging from minus 80 degrees Celsius all the way up to 200 degrees. That kind of dependable performance makes sense for things like parts used in airplanes or delicate medical equipment where materials need to behave predictably without fail.

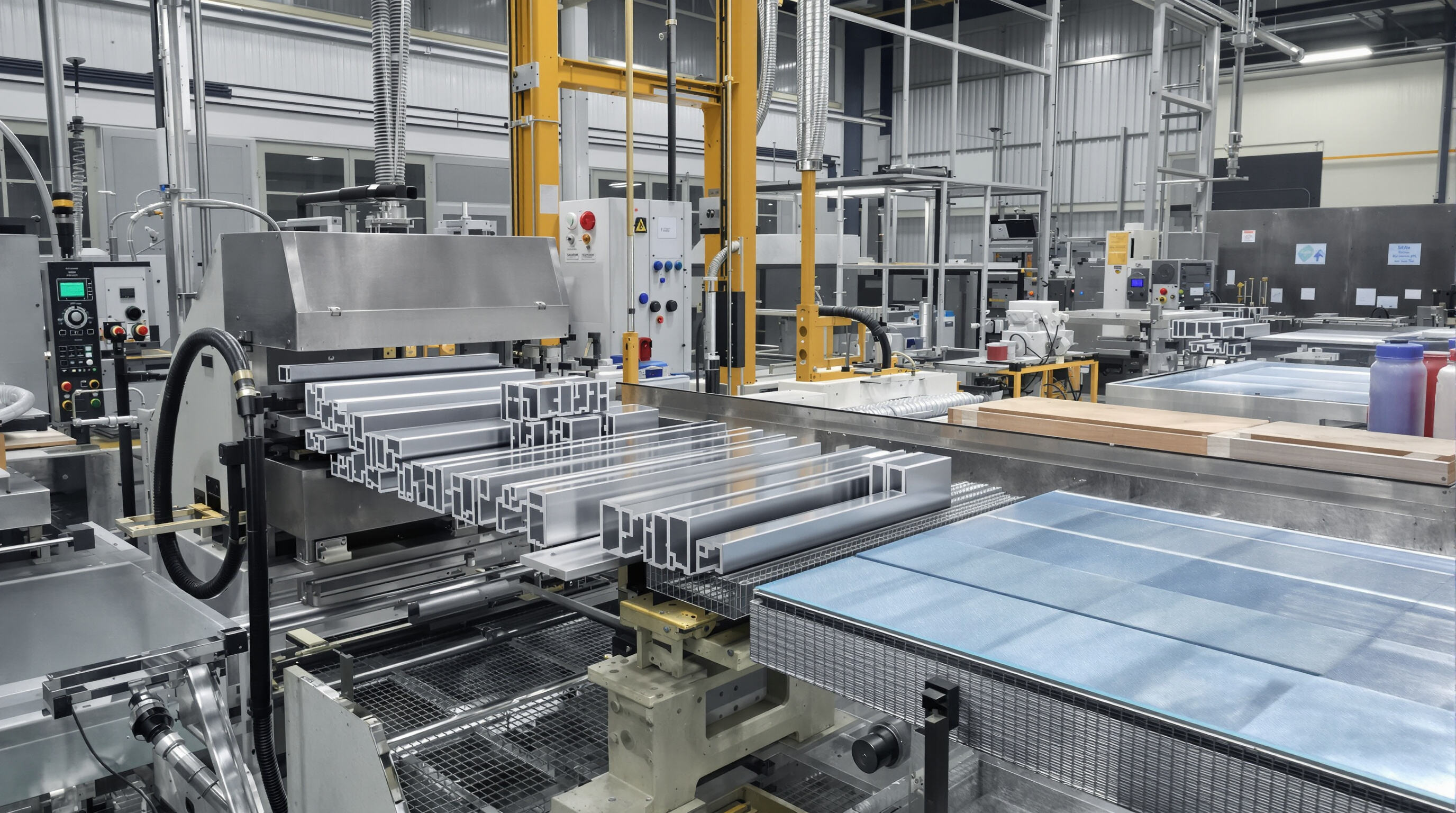

The first step in production involves thoroughly cleaning and etching aluminum surfaces to get rid of any dirt or oils. Once clean, the metal gets dipped into sulfuric acid while an electric current runs through it, starting what's called electrolytic oxidation. This treatment actually builds up the natural oxide layer on the aluminum surface. For regular anodizing (Type II), this layer grows from about 0.01 microns to somewhere between 5 and 25 microns thick. When making harder coatings (Type III), the thickness can reach all the way to around 100 microns. After creating these tiny pores across the surface, manufacturers add color by depositing metallic salts such as tin or cobalt using another electrolytic process. The final touch comes when they seal everything up either in hot water or with nickel acetate solution. This seals those microscopic holes shut, which makes the finish much tougher and better at resisting corrosion over time.
Type II anodizing typically forms oxide layers between 5 and 25 micrometers thick, which works well for things that need to look good while offering some protection against everyday wear. Interior architectural components often use this method since appearance matters more than extreme durability there. Then we have Type III, commonly called hardcoat anodizing, which builds much thicker coatings ranging from 25 to 100 micrometers. What makes this process stand out is how it boosts the surface hardness of aluminum by roughly 30 percent compared to untreated metal. For applications where parts will face harsh conditions, manufacturers tend to go with Type III because of its exceptional resistance to abrasion and corrosion. That's why it shows up so frequently in aircraft components, underwater equipment, and heavy machinery parts where long term performance takes precedence over visual appeal.
The coloring process works by putting the anodized profile into a bath with metallic salts. When electricity runs through this setup, it pushes colored ions into those tiny oxide pores we talked about earlier. What makes this technique so good? It creates colors that won't fade under sunlight exposure, all without needing any kind of paint application. Right after coloring comes sealing, which happens pretty much right away. Manufacturers either run the profiles through hot water or apply nickel acetate treatment. Either way, what happens next is important stuff at the molecular level the solution breaks down the oxide layer slightly while closing off those same pores we mentioned before. And why does this matter? Because when those pores are sealed properly, they form something like a protective shield against water damage and other corrosive elements getting into the metal over time.
Anodized profiles resist salt spray exposure for 3,000–5,000 hours—far exceeding raw aluminum's 168-hour threshold. This 60% improvement in corrosion resistance is directly attributed to the sealed oxide layer, which effectively blocks environmental degradation.
Anodization converts the surface into a hardened aluminum oxide layer, increasing hardness by up to 60% compared to untreated aluminum. The resulting structure offers:
Because the oxide layer is molecularly bonded to the substrate, it does not chip, peel, or delaminate. This makes anodized aluminum profiles ideal for high-traffic architectural installations and industrial machinery exposed to harsh conditions.
Electrolytic coloring allows precise infusion of over 150 standardized hues while maintaining a natural metallic luster. Compared to traditional coatings, anodized finishes offer superior consistency and longevity:
| Property | Traditional Coating | Anodized Aluminum Profile |
|---|---|---|
| Color Consistency | ±15% | ±5% |
| Fade Resistance | 5—7 years | 20+ years |
| Surface Texture | Coated feel | Natural metallic finish |
From architectural bronze to vibrant consumer electronics, the process enables brand-specific color matching without compromising durability. Pulsed anodizing techniques now allow gradient effects once limited to polymer-based finishes.
Anodized aluminum profiles have become popular choices for curtain walls and structural glazing systems because they come with that protective oxide layer that stands up to weather and keeps things thermally stable. What makes them so great is how resistant they are to corrosion, which means buildings last longer even when exposed to salt air near coasts or pollution in cities. Plus, these materials maintain their shape pretty well despite temperature changes, so those seals between panels stay intact over time. Another big plus? Aluminum isn't as heavy as steel but still packs serious strength. This means structures can be lighter on foundations, cutting down weight by around 30% or so compared to steel alternatives. Architects love this because it allows for higher buildings with bigger glass areas without compromising on safety standards.
In premium smartphones, anodized aluminum profiles provide durable, scratch-resistant chassis with electromagnetic shielding. A 2023 teardown analysis found that 72% of high-end models use these profiles, leveraging their ability to combine precise color matching with functional conductivity for antenna integration—a balance difficult to achieve with non-metallic alternatives.
Automotive manufacturers use anodized profiles to reduce weight by 18—22% in door frames and battery enclosures, enhancing energy efficiency. In industrial robotics, conveyor components made from anodized aluminum withstand 200% more cyclic stress than untreated counterparts, thanks to their abrasion-resistant surfaces.
When it comes to supporting sustainable construction practices, anodized aluminum stands out with its impressive 92 percent recyclability rate, which is actually the top score among all structural metals available today. These materials can last well over half a century when used in building exteriors, meaning buildings need fewer replacements over time and generate less construction waste as a result. What makes this material even better for environmentally conscious builders is how clean the manufacturing process remains. Anodization releases about forty percent fewer volatile organic compounds compared to traditional powder coatings, which explains why so many architects specify this finish for their LEED certified designs where long term performance and eventual recycling potential matter most in the big picture of sustainability planning.

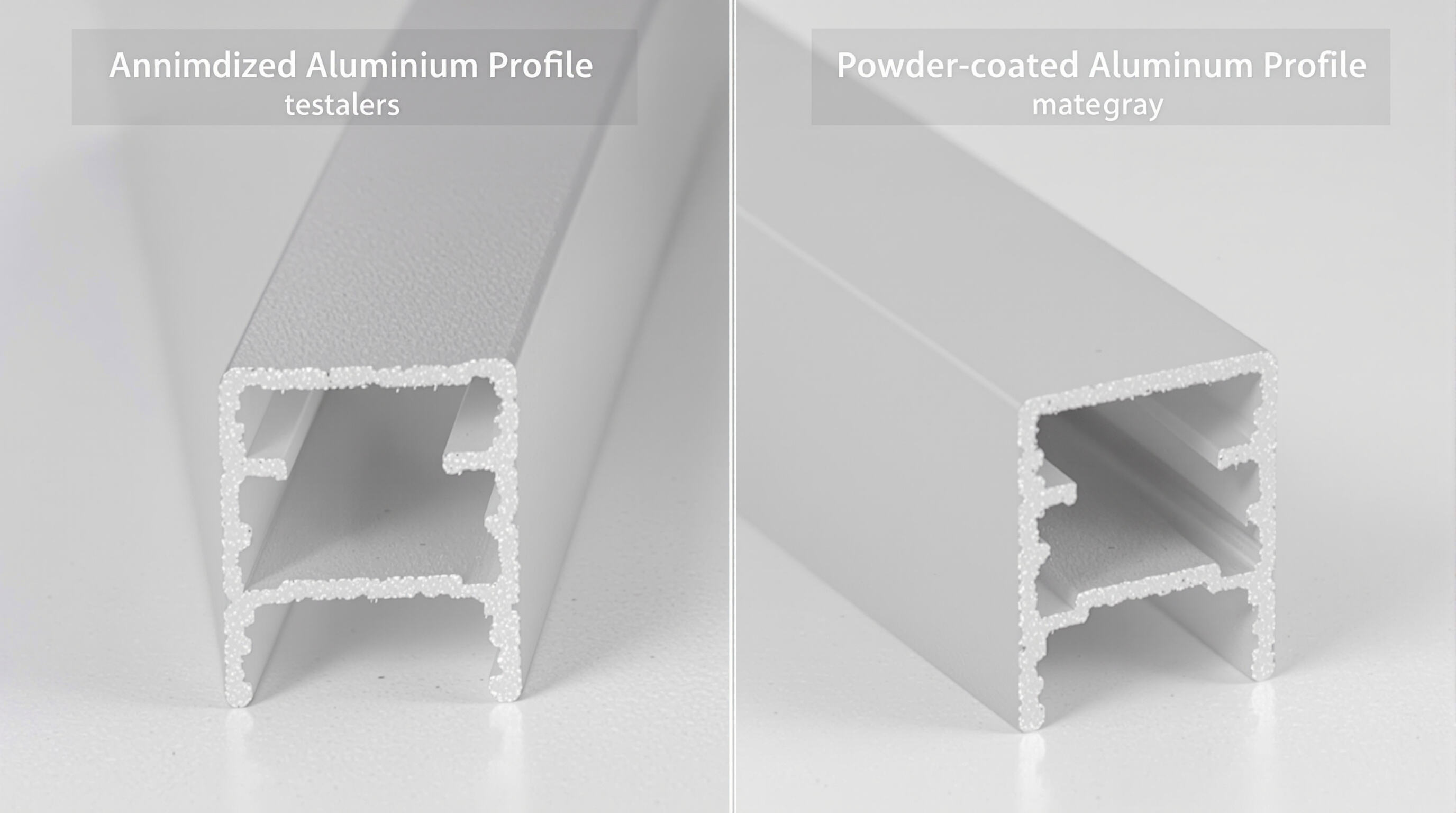

The anodizing process creates a tough oxide layer right within the metal itself, which gives these profiles much better protection against scratches and lasts way longer overall. Most anodized surfaces can keep looking good for around 20 to maybe even 30 years before showing real signs of wear, and they tend to hold up about three times better than those powder coated options out there. Powder coatings do offer nice matte looks and textured surfaces though, so many people still go for them. But let's face it, those coatings chip easily over time and start fading after just about 10 or so years, meaning most folks end up needing to recoat things sooner rather than later.
| Characteristic | Anodized Aluminum Profile | Powder-Coated Aluminum |
|---|---|---|
| Abrasion Resistance | 900—1,200 MPa Vickers hardness | 150—300 MPa |
| Color Longevity | 20—30+ years | 10—15 years |
| Maintenance Needs | Periodic cleaning only | Touch-ups for chips/scratching |
Anodizing uses water-based electrolytes and generates minimal VOC emissions, aligning with sustainable manufacturing practices. A 2024 corrosion protection study found that anodized profiles reduce lifecycle environmental impact by 40—60% compared to powder-coated alternatives, which rely on epoxy resins and energy-intensive curing processes.
Although anodized profiles carry a 25—35% higher initial cost, their minimal maintenance and 50% longer service life result in 18—22% lower total costs over a decade. In coastal areas, facilities save an additional 12—15% annually by avoiding corrosion-related repairs common with powder-coated surfaces.
Projects using anodized aluminum report 30—35% lower operating costs over 15 years due to eliminated recoating and reduced waste. Since the material is 100% recyclable without quality loss, the initial investment is typically offset within 5—7 years, reinforcing its value in long-term infrastructure planning.
Anodized aluminum profiles benefit from increased surface hardness, improved corrosion resistance, and enhanced aesthetic appearance due to the electrochemical process that forms a tough oxide layer.
Anodized aluminum offers longer-lasting performance and requires lower maintenance, although it has a higher initial cost than powder-coated aluminum. It is also more environmentally friendly due to fewer VOC emissions.
Yes, anodized aluminum profiles have a high recyclability rate of 92%. They contribute to sustainable construction practices by lasting longer and reducing construction waste.
